Operation Mode:
|
Asynchronous, simplex or full duplex, 20 Mbps |
|
Input/Output Interface:
|
TTL, 50 or 75 ohm coax. BNC bulkhead jack |
|
Transmission Line Interface:
|
2 ST fiber optic receptacles (SMA option) |
|
Transmission Distance:
|
See distance chart |
|
Transmitter Output Power:
|
30 microwatts into 50 micron fiber |
|
Wavelength:
|
820 nanometers (1300 nm option) |
|
Receiver Wavelength:
|
820 nanometers (1300 nm option) |
|
Minimum Sensitivity:
|
3 microwatts @ 820 nanometers |
|
Bit Error Rate:
|
10-9 |
|
Operating Temperature:
|
0 °C to 50 °C |
|
Metal Enclosure:
|
7.5" x 7" x 3"
(19 x 17.8 x 7.6 cm) |
|
Weight:
|
3 lbs. (1.36 kg) |
|
Input Power:
|
110 VAC 50/60 Hz |
|
230V Version:
|
2856V |
|
Mini Version:
|
2817-T/R |
|

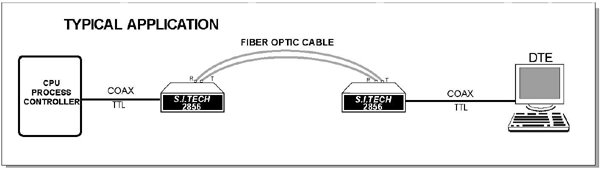

S.I. Tech Model 2856 is designed to convert TTL data to a light signal so that information can
be transmitted over fiber optics. At the remote end, another 2856 will convert this data from light to TTL format.
UL Listed. Meets FCC requirements of Class A, Part 15 Computing Devices Standard.
Specifications subject to change without notice.
|
Model 2856 - TTL to Fiber Optic Bit-Driver®
