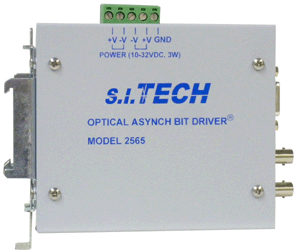

S.I. Tech, Inc.Model 2565 - RS-232 Optical Asynchronous Multiplexer

Operation Mode: Asynchronous, simplex or half duplex
Input/Output Interface: DB9-S
Transmission Line Interface: Metal ST connector is standard for interfacing with fiber optic duplex cable (SMA option, FC option for SM)
Transmission Distance: See Distance Chart
Optical Power into a 62.5 Micron Core Optical Fiber:
20 microwatts, 10 dB power budget @ 820 nanometers (1300 nm Option)
Receiver Sensitivity: 2 microwatts at less than 10-9 bit error rate
Operating Temperature: -40°C to 80°C Multimode
-20°C to +60°C Single mode
Metal Enclosure: 4.15" X 3.65" X 1.21"
(10.54 X 9.27 X 3.0 cm)
DIN Rail Mounting
Weight: 0.75 lb. (340 grams)
Input Power: 10 to 32VDC, 3W
  • Up to 115 Kbps/CH asynchronous operation on fiber optic cable, simplex or full duplex operation with 2 channels
  • 2 channels RS-232
  • -40°C to 80°C operating range (-20°C to +60°C SM)
  • Metal ST connector receptacle (SMA option)
  • LED indicators for power, transmit and receive data
  • Female DB-9 connector
  • DIN Rail Mounting

UL Listed. Meets FCC requirements of Class A, Part 15 Computing Devices Standard.
Specifications subject to change without notice.

Interface Options: Multiplexer

RS-232: 1 or 2 Channels (115 Kbps)
RS-422: 1 or 2 Channels (115 Kbps)
RS-485: 1 or 2 Channels (115 Kbps)
