Operation Mode:
|
CCTV Video/Audio/Data |
|
Video Format:
|
NTSC or PAL |
|
Transmitter Input Impedance:
|
75 ohms bulkhead jack
Composite: BNC
S-Video: Mini-DIN
Component: RCA Style |
|
Input Voltage:
|
0.5 to 1.6 Vpk-pk |
|
Linearity:
|
1% Typical |
|
Output Load Impedance:
|
75 ohms |
|
Operating Wavelength:
|
820 nanometers (1300 nm option) |
|
Optical Connectors:
|
SC receptacle |
|
Operating Temperature:
|
0 °C to 50 °C |
|
Metal Enclosure:
|
7.25" X 7" X 2.0"
(18.4 X 17.8 X 5.1 cm) |
|
Weight:
|
3lbs. (1.4 kg) |
|
Input Power:
|
110VAC, 220VAC 50/60 Hz, 10-30VDC |
|
220 Volt Version:
|
Model 2829V |
|
Features:
- Digitized 8-bit high resolution video
- Mono or stereo audio - digitized audio (24 KHz sampling)
- Digital data links, TTL, RS232,RS422, RS485
- Data rate - TTL: <150KHz
- RS232: 0 - 115.2Kbps
- RS422, RS485: 1200 - 115.2Kbps
- Options: NTSC, PAL video standards
- Video formats: Composite(CVBS), S-Video, Component(YPrPb or RGB)
- Full color or black & white
- Plug and play
- Status indicators PWR, Audio Overload, Receiver Sync, Test
- Long distance capability - see table
- Video: SNR > 40dB
- Audio: Mic or line input, line and speaker output
- Options:
- Bidirectional video, audio and data
- Can be bidirectional on one fiber
- Multimode or Single mode
Specifications subject to change without notice.
|

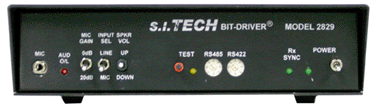

Model 2829 - Digital Video/Audio/Data Fiber Optic Bit-Driver®
