S.I. Tech, Inc.Model 2825 - ECL to Fiber Optic Transmitter/Receiver

2825 Bit-Driver

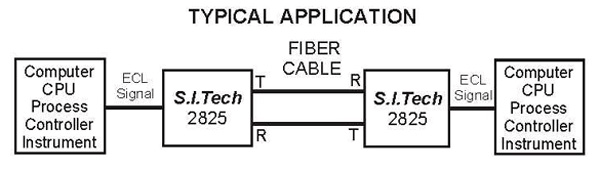

SYSTEM

Transmission: Up to 6500 ft. (2 Km) with suitable graded index fiber optic cable or 10 Km using single mode fiber
Typical Bit Error Rate: Better than 10-9

ELECTRICAL SIGNAL INPUT/OUTPUT
FOR TRANSMITTER AND RECEIVER

Format: ECL
Connector: Triax
Data Rate: Up to 40Mbps
Input impedance: ECL levels 120-Ohm
Input Power: 10 to 30VDC 500mA Max

OPTICAL TRANSMITTER

LED : 10dB Budget 62.5/125 Fiber
Wavelength: 1300 nm
Emitter Type: LED
Optical Connector: ST

OPTICAL RECEIVER

Wavelength: 1300 nm
Minimum Sensitivity: BER < 10-9 10dB Budget
Optical Connector: ST
Operating Temperature: 0°C to 50°C
Size: 5.00" X 2.60" X 1.0"
(12.7 X 6.6 X 2.5 cm)
Humidity: 0 to 90% Non-Condensing
TRANSMISSION LINE INTERFACE

Operating distance is dependent upon optical fiber core diameter and the cable's optical attenuation. The table below indicates three cables that may be used at any data rate. These cables are available in connectorized assemblies to meet the exact configuration of your application.

S.I.Tech offers complete links including fiber optic cable, connectors, cable assemblies, and Bit-Drivers®.


UL Listed. Meets FCC requirements of Class A, Part 15 Computing Devices Standard.
Specifications subject to change without notice.
