Operation Mode:
|
Asynchronous, simplex or full duplex 2 CH |
|
Input/Output Interface:
|
RS-232-C, asynchronous 2 Channels |
|
Transmission Line Interface:
|
Metal ST connector is standard for interfacing with fiber optic duplex cable (SMA option, FC option
for SM) |
|
Transmission Distance:
|
See distance chart |
|
Optical Power into a 62.5 Micron Core Optical Fiber:
|
20 microwatts, 10 dB power budget @ 820 nanometers (1300 nm Option) |
|
Receiver Sensitivity:
|
2 microwatts at less than 10-9 bit error rate |
|
Operating Temperature:
|
-40°C to +80°C for multimode
-20°C to +60°C for single mode
|
|
Metal Enclosure:
|
7.25 X 2.28 X 1.3 in
(18.4 X 5.8 X 3.3 cm) |
|
Weight:
|
1.2 lb. (640 grams) |
|
Input Power:
|
85 V to 260 VAC or DC
(+24 VDC and -48 VDC Option) |
|
Features:
- Up to 115 Kbps asynchronous operation on fiber optic cable, simplex or full duplex operation with 2 channels
- -40°C to +80°C operating range (-20°C to +60°C SM)
- Metal ST connector receptacle (SMA option)
- LED indicators for power, transmit and receive data
- Female RS-232C (V.24) connectors
- Complies with IEEE C37.90.1
- IEC 801 Surge Protection
- Panel Mounting Brackets
- See distance chart
UL Listed. Meets FCC requirements of Class A, Part 15 Computing Devices Standard.
Specifications subject to change without notice.
|

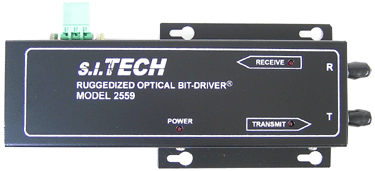

Model 2559 - Optical Asynchronous Ruggedized Multiplexer Bit-Driver®
