S.I. Tech, Inc.2428 / 2458 - Asynchronous Time Division Multiplexer

Operation Mode: Asynchronous, RS422 simplex or full duplex. RS485 half duplex.
Input/Output Interface: RS422/RS485 up to 76.8 Kbps
Input/Output Connector: 37 pin female (DB37)
Phase Distortion: Less than 10%
Optical Connector: ST standard (SMA option)
Transmission Distance: 6600 ft. (2 Km, 5 Km option)
Optical Power into a
62.5/125 micron Fiber:

10µW (50µW option)
Receiver Sensitivity: 0.5 Microwatt @ 10-9 BER
System Wavelength: 850 nm, (1300 nm option)
Bit Error Rate: 10-9
Operating Temperature: 0 °C to 50 °C
Metal Enclosure: 7.5"X7"X3" (19X17.8X7.cm)
Weight: 3 lbs. 1.36 kg) Rack 6 lbs. (2.72kg)
Input Power: 105 to 130 VAC 60 Hz
230 Volt Version: 2428V/2458V

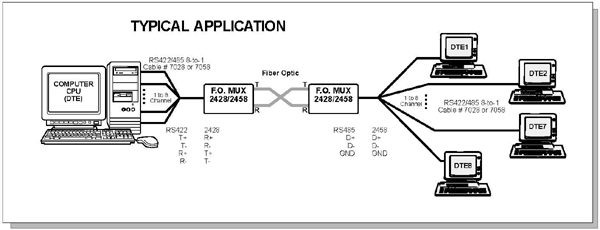

Model 2428/2458 is an 8 channel communication system providing 8 Bit-Driver links using one optical cable interface.

The 2428 provides 8 full duplex RS422 channels for any data rate on any channel(s) up to 76.8 Kbps.

The 2458 provides 8 half duplex RS485 channels. The data rate must be set at the factory for data rate up to 76.8 Kbps.


UL Listed. Meets FCC requirements of Class A, Part 15 Computing Devices Standard.
Specifications subject to change without notice.
