S.I. Tech, Inc.2282 - Asynchronous Metallic Isolated Bit-Driver®

FEATURES and SPECIFICATIONS

Interface: RS232 data with control lines

Connectors: DCE DB9-P (male), DTE DB9-S (female)

Data Rate: 0 to 115kbps (with R between 3k and 7k and C between 50PF and 1000PF)

Isolation: 1000VAC between the DTE port and the DCE and power ports

Power: 9 to 13VDC or 9 to 13VAC, 2.5 watts max.(Use S.I.Tech #2121 external power supply)

Temperature: 0 to 50°C

Weight: 10 oz (280 grams)

Size: 2-1/8" X 1-1/4" X 6-3/8" (54 X 32 X 162 mm)

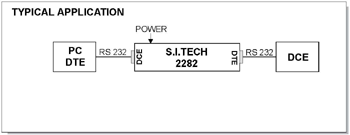

The S.I.Tech Model 2282 is an optically isolated RS232 to RS232 unit. It combines connector to connector compatibility with outstanding performance characteristics. It supports full duplex transmission between compatible EDP equipment at speeds up to 115 Kbps.

Meets EIA - 232 - F and ITU V.28 Standards


Meets FCC requirements of Class A, Part 15 Computing Devices Standard.
Specifications subject to change without notice.
