S.I. Tech, Inc.Model 2109 - Optical Mini Multidrop Bit-Driver®
Model 2109
Operation Mode: Asynchronous, half duplex
Input/Output Interface: RS-232, up to 115 Kbps
Transmission Line Interface: ST connectors are standard for interfacing with fiber optic duplex cable (SMA connectors optional)
Optical Power into a 62.5 Micron Core Optical Fiber:
10 microwatts, 13 dB power
budget @ 850 nanometers
(1300nm option)
Receiver Sensitivity: 500 nanowatts at less than 10-9 bit error rate. 50 microwatts max.
Operating Temperature: 0 °C to 50 °C
Input Power: External power supply (S.I.Tech #2121-110VAC to 12VDC)
Metal Enclosure: 3.6 x 2.3 x 1.0 in
(9.1 x 5.8 x 2.54 cm)
Panel or DIN rail mounting option
Weight: 0.25 lb (100 grams)
S.I. Tech model 2109 is a mini optical Multidrop Bit-Driver. The upstream and downstream fiber ports repeat data through the 2109 multidrop and drop/insert data on the RS-232 port. The RS-232 port inserts data onto the upstream fiber port only, and gets data dropped from the upstream fiber port only. The downstream fiber port only sends/receives data from the upstream fiber port.

RS - 232 DB-25 PIN CONNECTOR - FEMALE
PINS UTILIZED BY 2109 MINI BIT-DRIVER®
Pin No. Description Symbol
2
3
7 		Transmit Data
Receive Data
Ground		 TD
RD
GND

Meets FCC requirements of Class A, Part 15 Computing Devices Standard.
Specifications subject to change without notice.

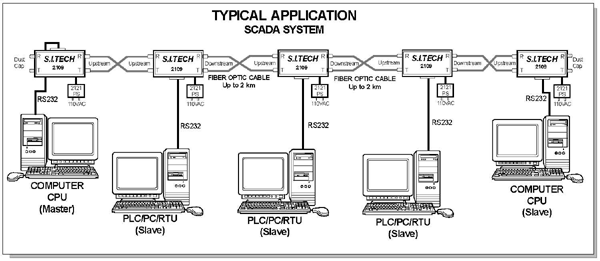

Model 2109 Application Example
