S.I. Tech, Inc.Model 2859 - RS-422 to Fiber Optic Bit-Driver®

2859 Bit-Driver

Operation Mode: Asynchronous, simplex or full duplex, 20 Mbps
Input/Output Interface: RS-422, 2 channel system, 4
Triax connectors
Transmission Line Interface: 4 ST connector fiber optic
receptacles (SMA option)
Transmission Distance: 2 Km - 6600 ft. (5 Km option)
Transmitter Output Power: 30 microwatts into 50 micron fiber
System Wavelength: 820 nanometers (1300 nm option)
Minimum Sensitivity: 3 microwatts @ 820 nanometers at less than 10-9 bit error rate
Operating Temperature: 0 °C to 50 °C
Storage Temperature: -40 °C to 80 °C
Humidity Non-Condensing: 0 to 95% (Storage & Operational)
Input Power: 85 to 260 VAC 50/60 Hz 10W
Metal Enclosure: 1U 19" rack
17"W X 1.75"H X 7.5"D
(43.2 X 4.3 X 19.0 CM)
Weight: 5 lbs. (2.3 kg)
230V Version: 2859V

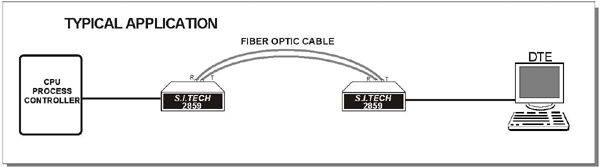

The S.I.Tech Model 2859 is designed for high speed RS-422 data communication using fiber. This system uses triax connectors for interfacing to high speed network. The model 2859 provides 2 independent channels for data, clock, etc.


UL Listed. Meets FCC requirements of Class A, Part 15 Computing Devices Standard.
Specifications subject to change without notice.
