Operation Mode:
|
Asynchronous, simplex or full duplex |
|
Input/Output Interface:
|
RS-232-C, Type D Asynchronous to 115.0 Kbps, connects directly to Terminal (RS-232 cable not required) |
|
Transmission Line Interface:
|
ST connector is standard for interfacing with fiber optic duplex cable (SMA option) |
|
Transmission Distance:
|
1000 ft. (300 m) |
|
Optical Power into a 50 Micron Core Optical Fiber:
|
0.5 microwatt, 10 dB power budget @ 820 nanometers |
|
Receiver Sensitivity:
|
50 nanowatts at less than 10-9 bit error rate |
|
Operating Temperature:
|
0°C to 50°C |
|
Metal Enclosure:
|
1.75 x 3 x 0.625 in
(4.5 x 7.5 x1.6 cm) |
|
Weight:
|
0.25 lb (100 grams) |
|
Input Power:
|
Host supplied or pin 9 |
|
Features:
- 50 to 115 Kbps asynchronous operation on fiber optic cable, simplex or full duplex operation
- 1000 ft (300 m) distance capability.
- 0 °C to 50 °C operating range
- ST connector receptacles (SMA option)
- DTE or DCE switch selectable
- Mini Bit-Driver is powered by DTE (RS-232 Self-powered)
- LED indicators for transmit and receive data
- Male or female RS-232C (V.24) connectors
UL Listed. Meets FCC requirements of Class A, Part 15 Computing Devices Standard.
Specifications subject to change without notice.
|

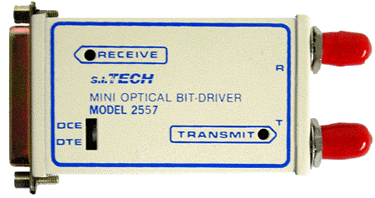

Model 2557 - Optical Asynchronous Mini Bit-Driver®
