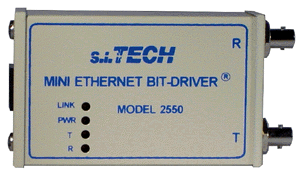

S.I. Tech, Inc.Model 2550 - Ethernet to Fiber Optic Transceiver

2550 Bit-Driver

Operation Mode: 10 Base - FL/FOIRL
Input/Output Interface: ST optical connector standard (SMA option)
Transmission Distance: See distance chart
Transmitter Output Power: 30 µW into 62.5/125 micron fiber
Wavelength: 820 nanometers (1300 nm option)
Data Rate: 10 Mbps
Collision Frequency: 10 MHz
Bit Error Rate: 10-9
Receiver Sensitivity: 3 µW
Operating Temperature: 0 °C to 50 °C
Metal Enclosure: 2.0 x 3.5 x 1.0 in
(5.0 x 8.90 x 2.54 cm)
Weight: 0.25 lb (100 grams)
Input Power: External with power supply
(S.I.Tech #2121 - 110 VAC to 12 VDC)
230V Version: S.I.Tech #2164 power supply
Rack Mount Version: 2350 (3000 rack)
Features:
  • Supports 10 Base - FL or FOIRL Standards
  • Small size
  • Link Status, Receive Data, Transmit Data, and Power LED indicators
  • ST or SMA optical connectors
S.I.Tech 2550 Ethernet Fiber Optic Transceiver is a compact adapter for connection of Ethernet based equipment to any fiber optic 10 Base FL / FOIRL network. The transceiver connects to RJ45 and provides ST or SMA fiber optic connectors.

Four LED indicators provide a visible verification of transmission status and transceiver functions.


Meets FCC requirements of Class A, Part 15 Computing Devices Standard.
Specifications subject to change without notice.
