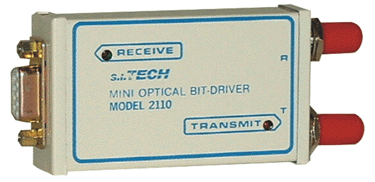

S.I. Tech, Inc.Model 2110-BAC - Optical Asynchronous Mini Bit-Driver® Point to Point

2110-BAC Bit-Driver

Operation Mode: Asynchronous, bi-directional,
half duplex
Input/Output Interface: RS485, 9 pin type D, asynchronous at 0 to 76.8 Kbps**
connects directly to terminal (RS485 cable not required)
Transmission Line Interface: ST connector is standard for interfacing with fiber optic duplex cable
Transmission Distance: See Distance Chart
Optical Power into a 50 Micron Core Optical Fiber:
0.5 microwatt, 10 dB power
budget* @ 880 nanometers
Receiver Sensitivity: 50 nanowatts at less than 10-9 bit error rate
Operating Temperature: 0°C to 50°C
Metal Enclosure: 1.75 x 3 x 0.625 in
(4.5 x 7.5 x1.6 cm)
Panel or DIN rail mounting option
Weight: 0.25 lb (100 grams)
Input Power: External with power supply
(S.I. Tech #2121 - 110 VAC to
12 Volt DC)
230V Version: Use S.I.Tech 2164 power supply
** Data rate must be set at factory
Features:
  • 0 to 76.8 Kbps asynchronous, RS-485 half duplex operation
  • 6600 ft. (2Km) maximum distance capability
  • 0°C to 50°C operating range
  • ST connector receptacle
  • Designed to work with Johnson Controls System 2110-BAC (Bacnet) at 38.4 Kbps or 2110-BAC(T) at 76.8 Kbps
  • For card version use 2310-BAC
  • Cable assembly use 7110
  • Data speed set at factory


UL Listed. Meets FCC requirements of Class A, Part 15 Computing Devices Standard.
Specifications subject to change without notice.
